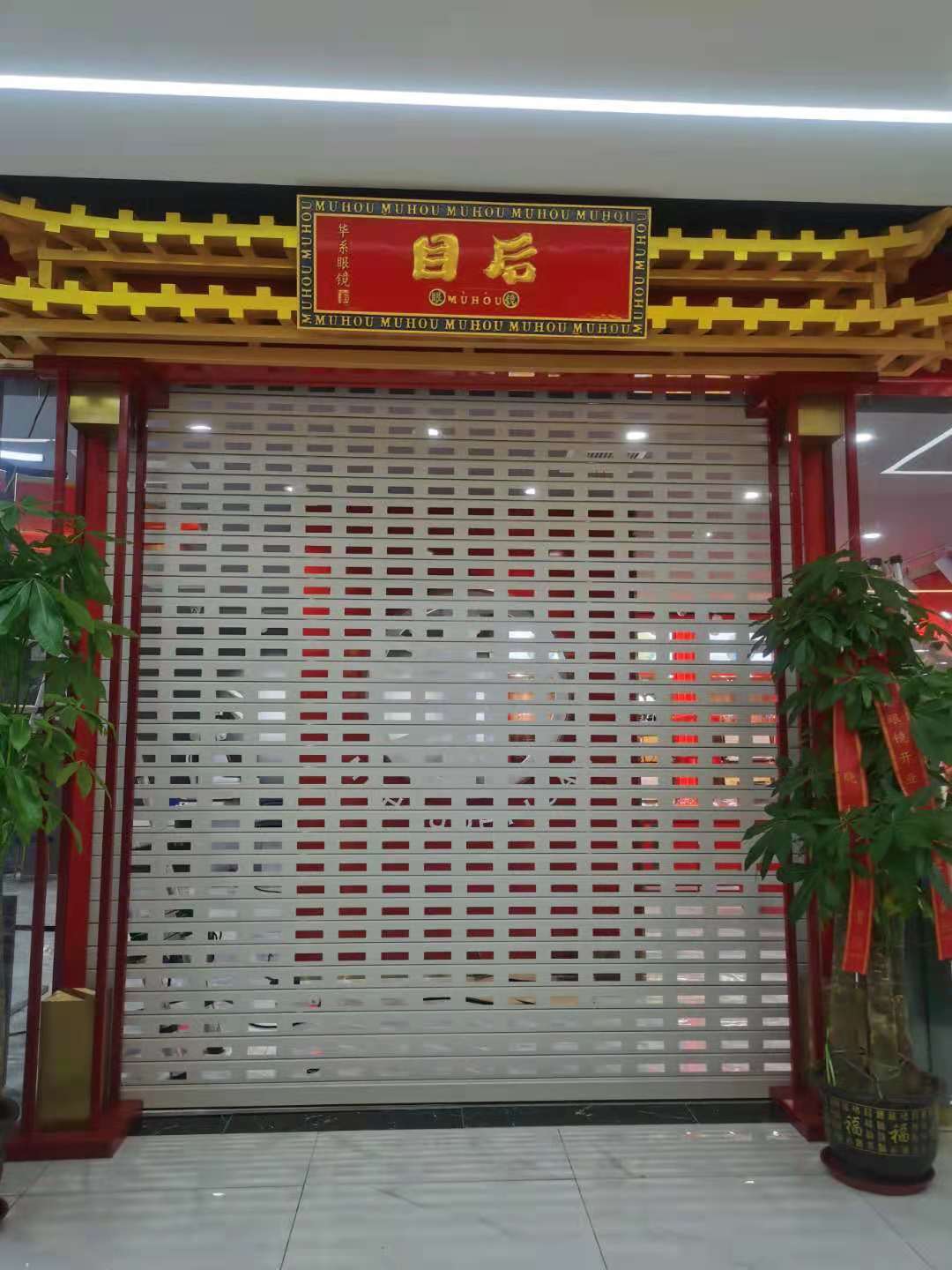

電動卷簾門是以多關節活動的門片串聯在一起，起動由電動機組帶動，卷簾門在固定的滑道內，以門上方卷軸為轉動上下的門。下面來了解了解有關電動卷簾門的技術參數內容吧。濟南卷簾門廠家為您講解吧。

The electric roller shutter door is a door that is connected in series with multi joint movable door pieces. The starting is driven by the motor group. The roller shutter door is in a fixed slide and rotates up and down around the roller shaft above the door. Let's learn about the technical parameters of the electric roller shutter door. Jinan roller shutter door manufacturer will explain it to you.

一、材質：簾面采用無機耐火布、硅酸鋁纖維毯、防輻射布和裝飾布經高溫線縫制而成，雙面用鍍鋅鋼制條夾制，確保簾布的抗風強度，底梁為鋼質鍍鋅，厚度1.2㎜，無接縫；卷軸：焊接鋼管，規格165厚度2.0mm，管壁外需除銹防腐；

1、 Material: the curtain surface is made of inorganic fire-resistant cloth, aluminum silicate fiber blanket, anti radiation cloth and decorative cloth through high-temperature sewing, and the two sides are clamped with galvanized steel strips to ensure the wind resistance of the curtain fabric. The bottom beam is steel galvanized, with a thickness of 1.2 mm and no joints; Reel: welded steel pipe with specification of 165 and thickness of 2.0mm. Rust removal and corrosion prevention are required on the outside of the pipe wall;

導軌：鋼質鍍鋅板厚度1.2mm，采用分體復合制作。導軌的滑動面應光滑平直，直線度每米不得大于1.5mm，全長直線不得超過0.12%。導軌的頂部應成圓弧形，其長度應超過洞口少75mm具有防煙性能的導軌有防煙裝置，使用材料應為不燃材料隔煙裝置與卷簾表面應均勻緊密貼合，貼合面不應小于80%；特級防火卷簾門座板與地面間隙不宜大于20mm。

Guide rail: the thickness of steel galvanized plate is 1.2mm, and it is made of split composite. The sliding surface of the guide rail shall be smooth and straight, and the straightness shall not exceed 1.5mm per meter, and the straightness of the whole length shall not exceed 0.12%. The top of the guide rail shall be arc-shaped, and its length shall be at least 75mm longer than the opening. The guide rail with smoke prevention performance shall be equipped with smoke prevention device, and the materials used shall be non combustible materials. The smoke isolation device and the roller shutter surface shall be uniformly and closely bonded, and the bonding surface shall not be less than 80%; The clearance between the base plate of the special fire-proof rolling shutter door and the ground should not be greater than 20mm.

二、控制系統功能：卷簾可獨立控制并具有手動功能，與溫度熔斷裝置聯動，與消防中控室直接進行聯動；實現煙感報警，卷簾自動下降地面1.5-1.8m高度，延時180秒（可調）然后在下降關閉。當下降時遇到障礙物可停止下降并上升；

2、 Control system function: the roller shutter can be independently controlled and has manual function. It is linked with the temperature fuse device and directly linked with the central fire control room; To realize smoke alarm, the roller shutter will automatically drop to the height of 1.5-1.8m on the ground, with a delay of 180 seconds (adjustable), and then it will be closed after falling. When falling, it can stop falling and rise when encountering obstacles;

可實現煙感報警一次下滑，溫感報警二次下滑，且溫感報警后可停止二次下滑，可在一個系統內互相轉換。符合標準6.4.6的要求；垂直啟閉速度：不小于2m/min。其自重下降速度不應大于9.5m/s，平均噪音85dB。

It can realize the first sliding of the smoke alarm and the second sliding of the temperature alarm. After the temperature alarm is eliminated, the second sliding can be stopped and can be converted in one system. Comply with the requirements of standard 6.4.6; Vertical opening and closing speed: not less than 2m / min. The self weight falling speed shall not be greater than 9.5m/s and the average noise shall be 85dB.

三、電機功能：主電源50HZ，380V，信號電源24V，功率0.37-2.2KW（根據門洞大小確定電機功率）；特級防火卷簾門應設有手動啟閉裝置，以備斷電時使用；

3、 Motor function: main power supply 50Hz, 380V, signal power supply 24V, power 0.37-2.2kw (the motor power is determined according to the size of the door opening); The special fire shutter door shall be equipped with manual opening and closing device for use in case of power failure;

應具有依靠卷簾自重下降的性能，并具有恒速性能，手動速放裝置的操作力不得大于50N；防火卷簾門應使用消防電源，電源線應穿金屬管暗敷，明敷時應采取防火保護措施；無火警時，卷簾具備上、停、下等手動和電動基本功能，上、下限位準確可靠。

It shall have the capability of falling by the self weight of the roller shutter and constant speed. The operating force of the manual quick release device shall not be greater than 50N; Fire fighting power supply shall be used for the fire-proof rolling shutter door. The power cord shall be concealed through the metal pipe, and fire protection measures shall be taken for the exposed laying; When there is no fire alarm, the roller shutter has the basic manual and electric functions of up, down and down, and the upper and lower limits are accurate and reliable.

此外，當我們在檢查過程中嚴防電動卷簾門沖頂或沖底或者反轉，如若出現緊急情況應立即停止轉動，切斷電源，注意，更多相關內容就來我們網站http://m.wurkt.com咨詢了解吧。

In addition, when we check the process, we strictly prevent the electric roller shutter door from hitting the top or bottom or reversing. In case of emergency, we should immediately stop rotating, cut off the power supply, pay attention to safety, and come to our website for more relevant information http://m.wurkt.com Consult and understand.
